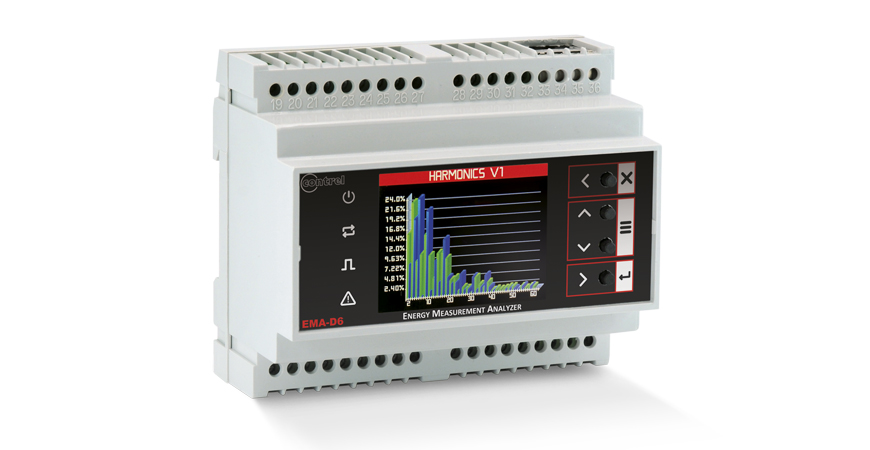

EMA-D6 Three-phase power meter for DIN rail mounting

Compact, versatile network analyzer for energy cost and basic network and asset management applications. Thanks to its large measured voltage range, the EMA-D6 with multi-range power supply can be connected in any low and medium voltage system up to a rated system voltage of 690 VAC. The RS-485 or Ethernet interface can be used for communication. In addition, the EMA-D6 has a multifunctional digital outputs using an alarm. The analyzer can accept up to 4 digital inputs.

Introduction
Range	EMA
Product name	EMA-D6
Product type	Network analyzer

Technical characteristics
Device application	Energy and power monitoring Multi-tariff Sub-billing
Power quality analysis	Up to the 63rd harmonic Phasor diagram Swell overvoltages DIPs Interruptions
Type of measurement	True RMS Active and reactive power Apparent power Current Voltage Energy Power factor Frequency Total current harmonic distortion THD (I) Total voltage harmonic distortion THD (V)
Supply voltage	90...250 VAC/DC 20...60 VAC / 24...85 VDC (optional)
Network frequency	50 Hz 60 Hz
Rated current [In]	5 A 1 A
Wiring connection	1P 2P 3P + N 3P 3P balanced ARON
Power consumption	10 VA
Display type	Backlight LCD
Measurement current	0,050...5 A with CT /5 A 0,010...1 A with CT /1 A
Measurement voltage	30-400 V phase to neutral 50-690 V phase to phase
Frequency measurement range	40-70 Hz
Sampling rate	128 samples/cycle
Neutral current input	Measured Calculated
Accuracy class	Class 1 active energy conforming to IEC 62053-22 Class 0.5S active energy conforming to IEC 62053-22 (optional) Class 0.2S active energy conforming to IEC 62053-22 (optional)
Communication port	RS485
Communication protocol	Modbus 4,8...115,2 kbauds
Number of outputs	2
Mounting mode	DIN rail 6 modules
Standards	CEI EN 61000-6-2:2006 CEI EN 61000-6-4:2007 CEI EN 61010-1:2013
Weight	450g

Environment
IP degree of protection	IP40 on front IP20 terminals
Relative humidity	5...95%
Operating temperature	-25...+70 °C
Storage temperature	-30...+80 °C

Options
Amperometric inputs from pre-wired compact sensors
Amperometric inputs from Rogowski sensors
Number of digital inputs	2 4
Number of digital outputs	2 4
Communication protocol	Ethernet Modbus TCP/IP
