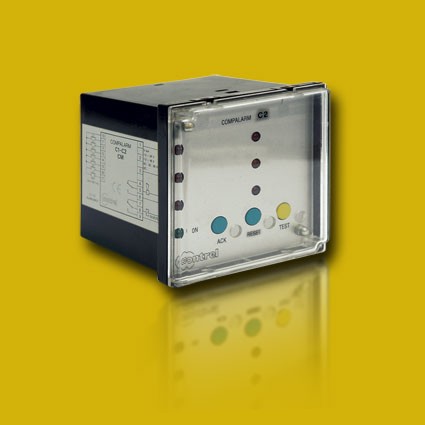

COMPALARM C

The alarm system COMPALARM C has been designed with the purpose of reducing to minimum extent its overall dimensions, but maintaining all the characteristics of COMPALARM A. For this reason, the 6 alarms system, has been housed in a 96 mm x 96 mm enclosure and available in different versions as:

• COMPALARM C1 for ISA1 sequence
• COMPALARM C2 for ISA2C sequence

COMPALARM C is fitted with LED’s at the front of the device, for the optical signalling, whilst for the acoustic signalling there is an output relay available. There is also available an output relay, for remote control of system in alarm.

This system is capable of receiving any signal, arriving from external potential free contacts, either normally open or normally close. The selectionis made through dipswitches, placed on the PCB and easily reachable by one side of the relay.

ELECTRICAL CHARACTERISTICS

• Auxiliary power supply: 110, 230, 400 V a.c. or 24-48 V a.c./d.c.
• Input contact: NO or NC selectable
• Output with 2 relays: Acoustic signal relay, Remote control relay
• Auxiliary voltage signal: Green LED
• Alarm signal: Red LED
• Push button for test: built in
• Push button for acknowledgement: built in
